1670KW 2087KVA Mitsubishi Diesel Engine Generator Set For Construction Company

Name: 1670KW 2087KVA Mitsubishi Diesel Engine Generator Set For Construction Company
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: MTU/16V4000G23
Price: 591,700.00 USD
Availability: InStock

Brand Name:	MTU engine
Model Number:	MTU/16V4000G23
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

MTU Open Diesel Generator 1670KW

Rated Voltage::

230V/400V

Rated Current::

3006A

Frequency::

50Hz/60Hz

Alternator::

EG450-1600N

Control Panel::

Deepsea / Harsen / Smartgen

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year Or 1000hrs

Genset Dimension::

6500×2600×2500mm

Genset Weight::

17000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-1670

Packaging Details:

Plastic wrapped on wooden pallet

Supply Ability:

200pcs/month

Highlight:

2087KVA MTU Diesel Generator

1670KW Diesel Generators Sets

2087KVA Diesel Generators Sets

Product Description

MTU MTU/16V4000G23 diesel generator sets features:

Product feature of Low Noise Electric Start Diesel Generator MTU 1670kw:

1. High strength base frame material can significantly reduce the vibration during operation.

2. Marvelous spray coating technology can effectively prevent against rain and noise.

3. Special sound absorbing material and system can maximally reduce noise to 65dBA/7m

1670KW 2087KVA Mitsubishi Diesel Engine Generator Set For Construction Company 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-M1670
Prime Powder		1670KW/2087.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		3006A
Genset Weight		1700kg(Net)
Length x Width x Height (Engine) (mm)		6500×2600×2500mm
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Benz Engine
Model		MTU/16V4000G23
Rated speed		1800rpm
Standby Powder		1978KW/2472.5KVA
Fuel Consumption		≤205g/kw.h
Lube oil capacity		300L
Bore (mm) x Stroke (mm)		170×210 mm
Displacement (litre)		76.3
Coolant capacity, L		/
Configuration		16 cylinder V-type, four stroke, water air cooling
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Ying Ge
Model		EG450-1600N
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		≥95%—105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

1670KW 2087KVA Mitsubishi Diesel Engine Generator Set For Construction Company 1

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

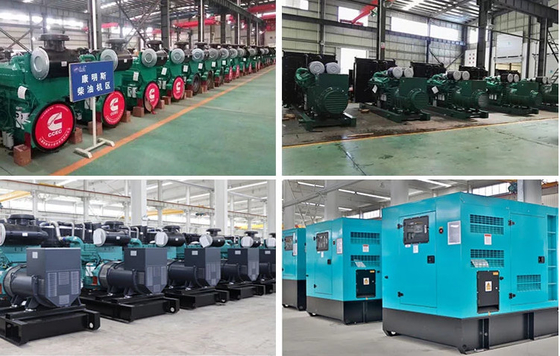

Our factory

Mingbang Co.,Ltd is devoted to the R&D and manufacturing of diesel generator sets since its establishment in 2008 ,Wetech accumulates a wealth of experience in the manufacturing and maintenance of generator sets field. Our production capacity amounts to 4000 sets per year. Wetech production are submit to ISO8525, GB/T2820-97 and CE certification, and quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.

1670KW 2087KVA Mitsubishi Diesel Engine Generator Set For Construction Company 3

Diesel Generators Sets Germany MTU 1670KW Diesel Generator 2087KVA Power Genset With Mercades-Benz Engine

FAQ

1.Q: What is your MOQ of this item?
A:1 Set

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit

3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.

4.Q: Where is your Loading Port?
A:Shanghai or others

5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.

6.Q: What is your company's available production capacity?
A:100 Sets per month

7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours

Our Customer

1670KW 2087KVA Mitsubishi Diesel Engine Generator Set For Construction Company 4

Your further inquiry will be welcome!!
