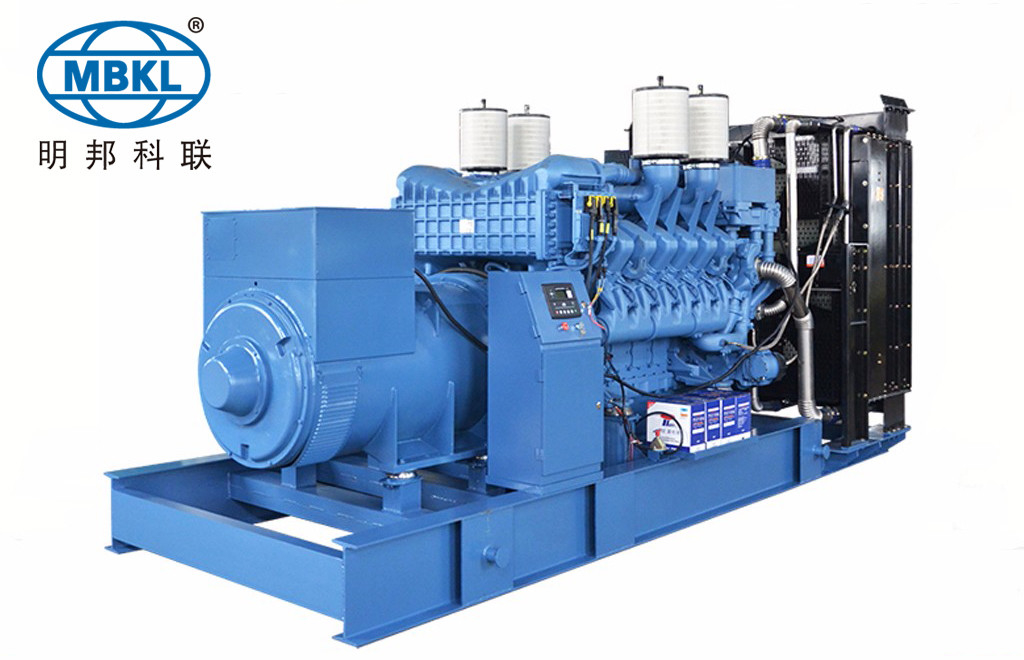

1250KVA Diesel Generator sets with MTU engine

Name: 1250KVA Diesel Generator sets with MTU engine
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: MTU/16V4000G63
Price: 591,700.00 USD
Availability: InStock

Brand Name:	MTU engine
Model Number:	MTU/16V4000G63
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

MTU Open Diesel Generator 1830KW

Rated Voltage::

230V/400V

Engine Model::

MTU/16V4000G63

Rated Current::

3294A

Frequency::

50Hz/60Hz

Alternator::

EG500-1800N

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

6550×2600×2500mm

Genset Weight::

17600kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-1830

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

1250KVA Air Cooled Diesel Generator

1250KVA MTU Diesel Generator

16V4000G63 Air Cooled Diesel Generator

Product Description

MTU MTU/16V4000G63 diesel generator sets features:

1. new design make diesel engine more beautiful;
2 .large capacity fuel tank to work longer;
3. sing uniaxial balance, so that the diesel engine is more balanced;
4. low fuel consumption, more economical diesel engine;
5. excellent starting performance, the starter is more convenient;
6. using an oil bath air filter, more adapted to the harsh working environment.

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-M1830
Prime Powder		1830KW/2287.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		3294A
Genset Weight		17600kg(Net)
Length x Width x Height (Engine) (mm)		6550×2600×2500mm
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Benz Engine
Model		MTU/16V4000G63
Rated speed		1800rpm
Standby Powder		2162KW/2702.5KVA
Fuel Consumption		≤205g/kw.h
Lube oil capacity		300L
Bore (mm) x Stroke (mm)		170×210 mm
Displacement (litre)		76.3
Coolant capacity, L		/
Configuration		16 cylinder V-type, four stroke, water air cooling
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Ying Ge
Model		EG500-1800N
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		≥95%—105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

1250KVA Diesel Generator sets with MTU engine 1

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

Our factory

Mingbang Co.,Ltd is devoted to the R&D and manufacturing of diesel generator sets since its establishment in 2008 ,Wetech accumulates a wealth of experience in the manufacturing and maintenance of generator sets field. Our production capacity amounts to 4000 sets per year. Wetech production are submit to ISO8525, GB/T2820-97 and CE certification, and quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.

Air Cooled Diesel Generator Germany MTU 1000KW Diesel Generator 1250KVA Power Plant With Mercades-Benz Engine 16V4000G63

FAQ

Pre-sale service
Provide specification parameter and consultants service, customized design optional.
According the requirement of customer we
can design and offer a complete set of equipment, such as mute device and heat treatment device and so on.
After –sale service
Installation guide and maintenance manual
Guide user to install the machine and free debugging machine for free.
Training the operator for the user, cooperate with the user finish the acceptance work.
Tracking service
Regularly consult feedback from end user ,avoid potential problem and solve problem in time

Our Customer

1250KVA Diesel Generator sets with MTU engine 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
