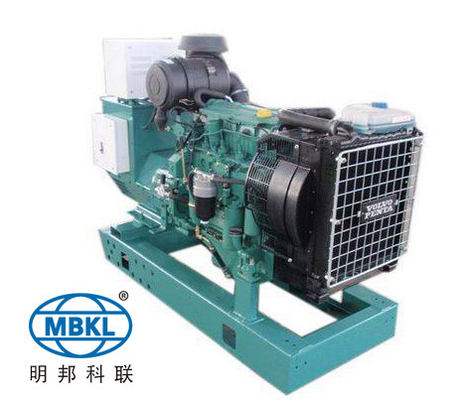

Open Type 1200kw 400v Volvo Diesel Generator

Name: Open Type 1200kw 400v Volvo Diesel Generator
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: TAD732GE
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Volvo engine
Model Number:	TAD732GE
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Volvo Open Diesel Generator 150KW

Rated Voltage::

230V/400V

Engine Model::

TAD732GE

Rated Current::

270A

Frequency::

50Hz/60Hz

Alternator::

MBV7B

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2500*1000*1600mm

Genset Weight::

1550kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-150

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

400v Volvo Diesel Generator

1200kw Volvo Diesel Generator

60hz Volvo Diesel Generator

Product Description

Volvo 150kw generator price

are environmentally friendly,and the emission situation achieve European Union 2 or 3 and EPA environmental standards,which selects electronic injection diesel engines prestigious from Sweden

Volvo group production.Volvo company is founded in 1927,that shining brand is closely associated with its three core values-quality,safety,environmental protection.Volvo diesel generator set features:cold starting,strong loading capability,small volume,low fuel consumption,long service life.

Open Type 1200kw 400v Volvo Diesel Generator 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-150
Prime Powder		150KW/187.5KVA
Standby Powder		165KW/206.25KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		270A
Genset Weight		1550KG(Net)
Length x Width x Height (Engine) (mm)		250010001600mm
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Volvo Engine Co. Ltd
Model		TAD732GE
Rated speed		1500rpm
Prime Powder		162KW/202.5KVA
Standby Powder		179KW/223.75KVA
Fuel Consumption		≤210g/kw.h
Lube oil capacity		20L
Bore (mm) x Stroke (mm)		108/130mm
Compression ratio		18:01
Displacement (litre)		7.6L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Mechanical speed regulation
Starting voltage		24 Volts DC
Fuel system		Direct injection fuel system, Bosch unit injection pump
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27H
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Open Type 1200kw 400v Volvo Diesel Generator 1

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

Our factory

Mingbang Co.,Ltd is devoted to the R&D and manufacturing of diesel generator sets since its establishment in 2008 ,Wetech accumulates a wealth of experience in the manufacturing and maintenance of generator sets field. Our production capacity amounts to 4000 sets per year. Wetech production are submit to ISO8525, GB/T2820-97 and CE certification, and quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.

Open Type 1200kw 400v Volvo Diesel Generator 3

Open Or Silent Type 50hz 60hz Volvo Diesel Generator 1200kw 400v 230v Diesel Generator Sets

We deliver all of our diesel generators on time. The diesel generators are packed by standard sea freight rules or according to customers' requests. We make sure that our diesel generators are safe during transportation.

We have exported to over 40 countries and regions, including the USA, Russia, Australia, Ukraine, Pakistan, Philippines, Myanmar, Cambodia, South Africa, Kenya, Zambia, Kuwait, UAE, Dominican, Ecuador, Venezuela, Panama, etc. Our diesel generator sets are widely used in Mines, Railways, Field construction sites, Road traffic maintenance, Schools, Residences, Shopping malls, as well as Factories, Enterprises, Hospitals, Data centers, Communications, and other departments, as a backup or temporary power supply.

Our Customer

Open Type 1200kw 400v Volvo Diesel Generator 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
