products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Volvo Diesel Generator Set
Created with Pixso.

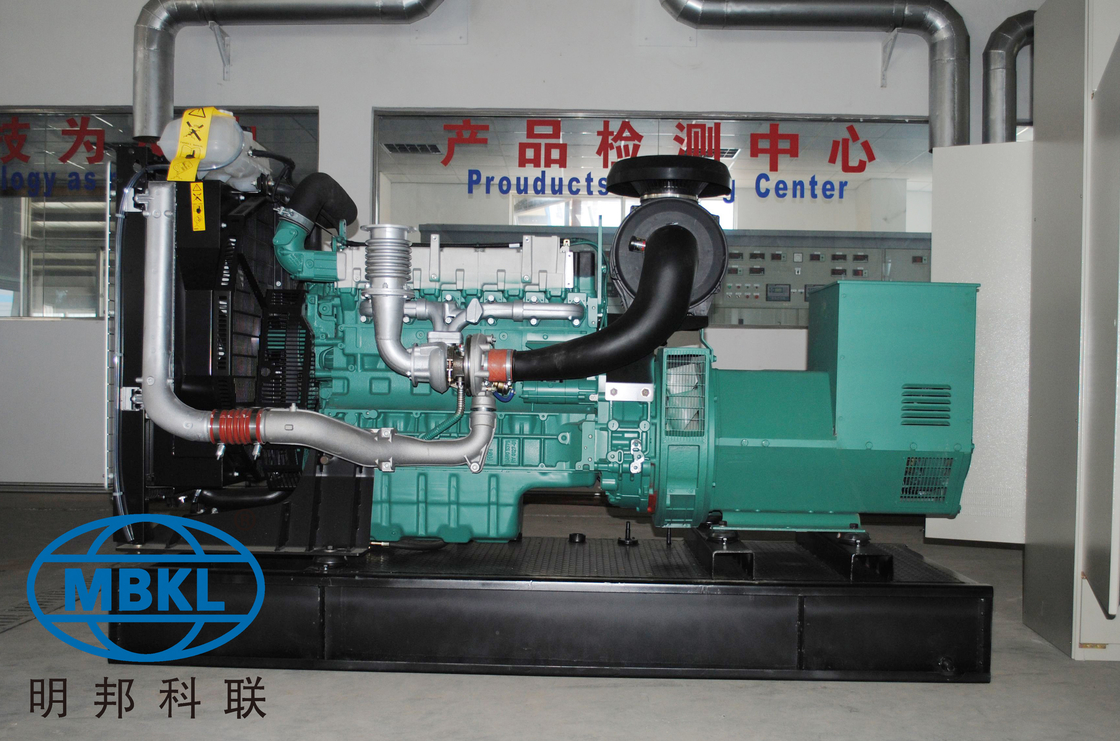

50Hz 60Hz TAD1341GE 312.5kva Volvo Diesel Generators

50Hz 60Hz TAD1341GE 312.5kva Volvo Diesel Generators

Brand Name: Volvo engine
Model Number: TAD1341GE
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union,T/T,D/P,L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Brand Name::
Volvo Open Diesel Generator 250KW
Rated Voltage::
230V/400V
Engine Model::
TAD1341GE
Rated Current::
450A
Frequency::
50Hz/60Hz
Alternator::
MBC4C
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
2900*1100*1600mm
Genset Weight::
2450kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-250
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

312.5kva Volvo Diesel Generators

,

TAD1341GE Volvo Diesel Generators

,

312.5kva 250kw Diesel Generator

Product Description

Volvo TAD1341GE diesel generator sets features:

Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota, Powered by Yanmar or other
reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

50Hz 60Hz TAD1341GE  312.5kva Volvo Diesel Generators 0



Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-250
Prime Powder 250KW/312KVA
Standby Powder 280KW350KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 450A
Genset Weight 2450KG(Net)
Length x Width x Height (Engine) (mm) 2900*1100*1600mm
Voltage 400/230V
Frequency 50HZ
Engine Specification
Manufacturer Volvo Engine Co. Ltd
Model TAD1341GE
Rated speed 1500rpm
Prime Powder 302KW/377.5KVA
Fuel Consumption ≤210g/kw.h
Lube oil capacity 36L
Bore (mm) x Stroke (mm) 131*158mm
Compression ratio 18:01
Displacement (litre) 12.6L
Coolant capacity, L /
Configuration 6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling  Liquid Cooled
Governor type diesel management system EMS2
Starting voltage 24 Volts DC
Fuel system Full electronic fuel injection system (fuel common rail)
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Jiangsu Mingbang Intelligent Technology Co.Ltd
Model MBC4C
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless

50Hz 60Hz TAD1341GE  312.5kva Volvo Diesel Generators 150Hz 60Hz TAD1341GE  312.5kva Volvo Diesel Generators 2

Rated power Engine Alternator Control panel
24kw~1500kw Cummins Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators
Deepsea
ComAp
Harsen
Smartgen
36kw~18+00kw Perkins
68kw~560kw Volvo
20kw~200kw Deutz
40kw-2200kw Yuchai
50kw-2200kw Weichai
540kw-1900kw Mitsubishi
50kw-800kw SDEC
650kw~2200kw Chinese engine



Our factory

Mingbang Co.,Ltd is devoted to the R&D and manufacturing of diesel generator sets since its establishment in 2008 ,Wetech accumulates a wealth of experience in the manufacturing and maintenance of generator sets field. Our production capacity amounts to 4000 sets per year. Wetech production are submit to ISO8525, GB/T2820-97 and CE certification, and quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.

50Hz 60Hz TAD1341GE  312.5kva Volvo Diesel Generators 3



VOLVO Penta 250KW Diesel Generator Price Global Warranty 250kw Power Generator Volvo 312.5kva Diesel Generator Set



We are manufacturer!!!



Diesel generator power range from 8kw-2000kw

Gas generator power range from 10kw-1000kw

Engine brand :Doosan,weichai ,yuchai ,ricardo and so on .

Alternator brand :Stamford,Marathon,Lerory Somer and so on .

Control module:Smartgen,CoMap,Deepsea and so on



Q1: How is your Package & Payment & Delivery Date & Warranty?

A.1) Package: Plastic fiMB (free of charge) or wooden case (add USD200 for wooden)

A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.

A.3) Delivery: 7-25 days after we get the down payment.

A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply) from installed date. During the guarantee period. Such as Cummins or Perkins generators. They are international brands and the after-sale service is worldwide. You can contact your country's after-sale or contact us for repairment. When replacing spare parts, please kindly take some pictures to describe the problems. We will solve it ASAP.



Our Customer

50Hz 60Hz TAD1341GE  312.5kva Volvo Diesel Generators 4

More details for diesel generator sets ,please contact us any time



Your further inquiry will be welcome!!
