products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Cummins Diesel Generator Sets
Created with Pixso.

100KW 125KVA Cummins Engine Silent Diesel Generators

100KW 125KVA Cummins Engine Silent Diesel Generators

Brand Name: MBKL
Model Number: MB-C100
MOQ: 1 set
Price: USD$7800-USD$10000
Payment Terms: L/C,T/T,
Supply Ability: 200sets per month
Detail Information
Place of Origin:
China
Certification:
CE&ISO
Engine Brand:
Cummins 6BTA5.9-G2
Alternator:
MBKL, Leroy Somer, Stamford
Control Panel:
Smartgen, Deep Sea
Rated Power:
100kw/125kva
Phase:
AC Single Phase / AC Three Phase
Frequency:
50HZ / 60HZ
Rated Voltage:
230V / 400V
Speed:
1500RPM / 1800RPM
Rated Current:
180A
Type:
Open Type / Silent Type
Warranty:
12 Months / 1000 Hours
Fuel:
Diesel
ATS:
Optional
Packaging Details:
Plastic wrapped on Polywood bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200sets per month
Highlight:

Cummins Engine Silent Diesel Generators

,

125KVA Silent Diesel Generators

,

100KW Silent Diesel Genset

Product Description

100kw silent diesel generators 100 kw with Cummins generator price 125 kva power Genset for sale



Cummins diesel engine advantage



1. Original Cummins diesel engine model :6BTA5.9-G2
2. Strict quality control.
3. Some model engines approval EPA TIER 4 and Euro stage III emission requirement



100KW 125KVA Cummins diesel generator specification as below:



Cummins Diesel Genset Specification
Manufacturer Jiangsu Mingbang Intelligent Technology Co.Ltd
Model MB-C100
Prime Power 90KW/112.5KVA
Standby Power 100KW/125KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 180A
Genset Weight 1350KG
Length x Width x Height (Engine) (mm) 2300x860x1460mm
Voltage 400/230V
Frequency 50HZ/60HZ
Cummins Engine Specification
Manufacturer Dongfeng Cummins Engine Co. Ltd
Model 6BTA5.9-G2
Rated speed 1500rpm/1800rpm
Prime Power 106KW/132.5KVA
Standby Power 116KW/145KVA
Fuel Consumption <=198g/KW.H
Lube oil capacity 55L
Bore (mm) x Stroke (mm) 130*163
Compression ratio 17:1
Displacement (litre) 14L
Coolant capacity, L /
Configuration 6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Jiangsu Mingbang Intelligent Technology Co.Ltd
Model MBC27C
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 60/50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 23
Excitation Type Brushless

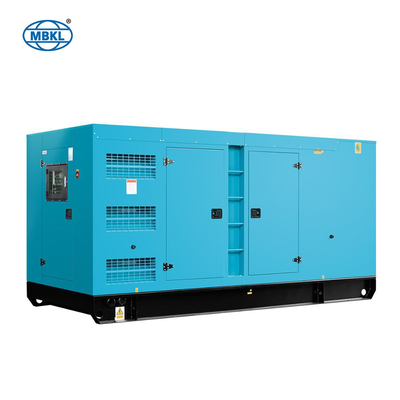

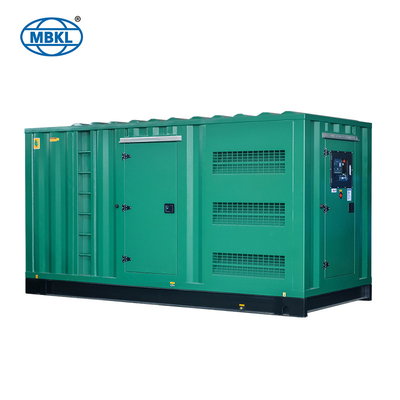

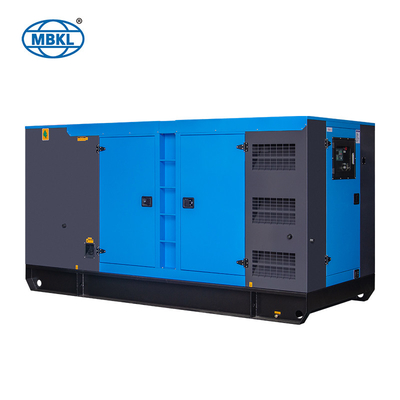

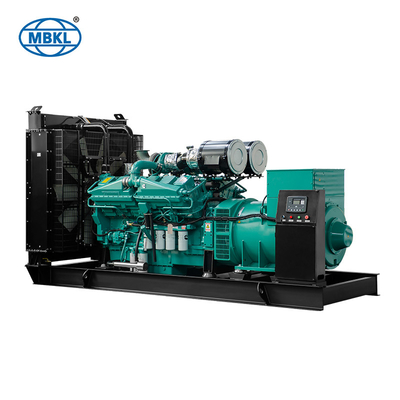

Pictures for reference only as below:


100KW 125KVA Cummins Engine Silent Diesel Generators 0100KW 125KVA Cummins Engine Silent Diesel Generators 1100KW 125KVA Cummins Engine Silent Diesel Generators 2


100KW 125KVA Cummins Engine Silent Diesel Generators 3


Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



About Mingbang company:



Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai


Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,

and so on. Key diesel generator stock ranges from 3KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will support you the most reliable and most cost-efficient generators and accessories. Weclome to visit our factory!

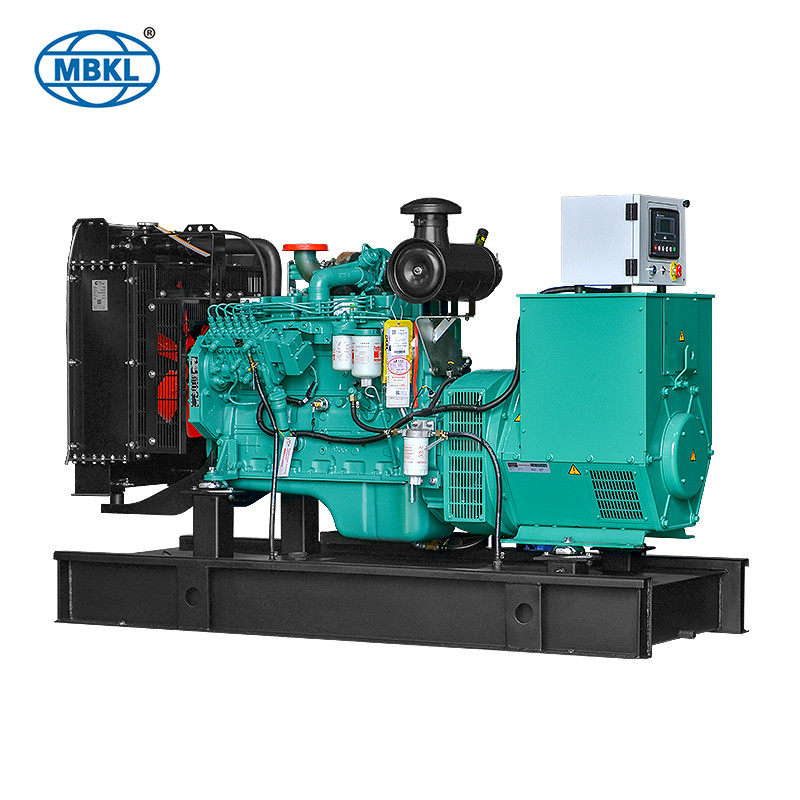

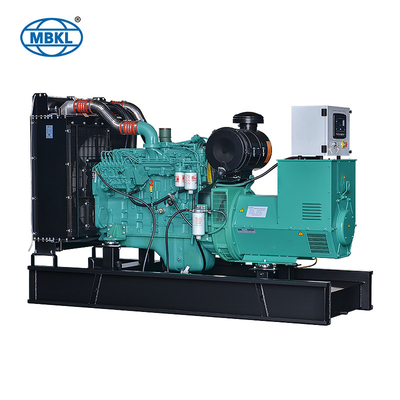

100KW 125KVA Cummins Engine Silent Diesel Generators 4100KW 125KVA Cummins Engine Silent Diesel Generators 5



RFQ


1. What is your warranty period?


Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).


2. What is your payment terms?


T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.


3. What is your delivery time?


As usually the delivery time is 7 to 15 working days.If you have special requirements, the delivery will be longer. Kindly contact us to confirm it.


4. Can the generators be customized?


Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.


5. Can you use our logo?


Yes. For mass orders, we can use customer's logo instead of ours.
