Yangdong Engine 48KW 60KVA Silent Diesel Generator For Home

Yangdong Engine 48KW 60KVA Silent Diesel Generator For Home

Brand Name: MBKL
Model Number: MB-CYD48
MOQ: 1 set
Price: USD$4000-USD$6000
Payment Terms: L/C, T/T,
Supply Ability: 200sets per month
Detail Information
Place of Origin:
China
Certification:
CE&ISO
Engine Brand:
Yangdong Y4102ZLD
Alternator:
MBKL, Leroy Somer, Stamford
Control Panel:
Smartgen, Dea Sea
Rated Power:
48kw/60kva
Phase:
AC Single Phase / AC Three Phase
Frequency:
50HZ/60HZ
Rated Voltage:
230V / 400V /120/240V
Speed:
1500RPM/1800RMP
Rated Current:
86.4A
Type:
Open Type / Silent Type
Warranty:
12 Months / 1000 Hours
Fuel:
Diesel
ATS:
Optional
Packaging Details:
Plastic wrapped on Polywood bearers. LCL, FCL
Supply Ability:
200sets per month
Highlight:

60KVA Silent Diesel Generator

,

Yangdong Engine Silent Diesel Generator

,

48KW Home Diesel Generator

Product Description

Factory offer 48KW Diesel Generator 60KVA Silent Diesel Generator for Home use





Yangdong Diesel Engine Advantage





1. Original Yangdong diesel engine model :Y4102ZLD
2. Comfortable, lower vibration and noise.
3.
The emission requirements o fnon-road diesel engines have been meet , and some products hanveachieved
the U.S.EPA, EuropeE-mark, india CPCB and other emission standars.





48KW 6KVA Cummins Diesel Generator Specification :





Cummins Diesel Genset Specification
Manufacturer Jiangsu Mingbang Intelligent Technology Co.Ltd
Model MB-CYD48
Prime Power 40KW/50KVA
Standby Power 48KW/60KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 1080A
Genset Weight 1000KG
Length x Width x Height (Engine) (mm) 1570×635×1190mm
Voltage 400/230V
Frequency 50HZ/60HZ
Cummins Engine Specification
Manufacturer Yangdong
Model Y4102ZLD
Rated speed 1500rpm
Prime Power 48KW/60KVA
Standby Power 50KW/62.5KVA
Fuel Consumption <=225g/KW.H
Lube oil capacity 15L
Bore (mm) x Stroke (mm) 102*118
Compression ratio 18:1
Displacement (litre) 3.857L
Coolant capacity, L /
Configuration 4 in line   ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Jiangsu Mingbang Intelligent Technology Co.Ltd
Model MBC22C
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 60/50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 23
Excitation Type Brushless

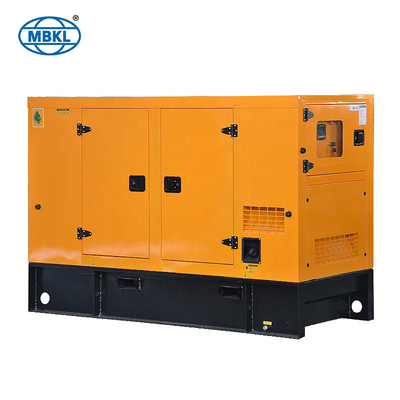

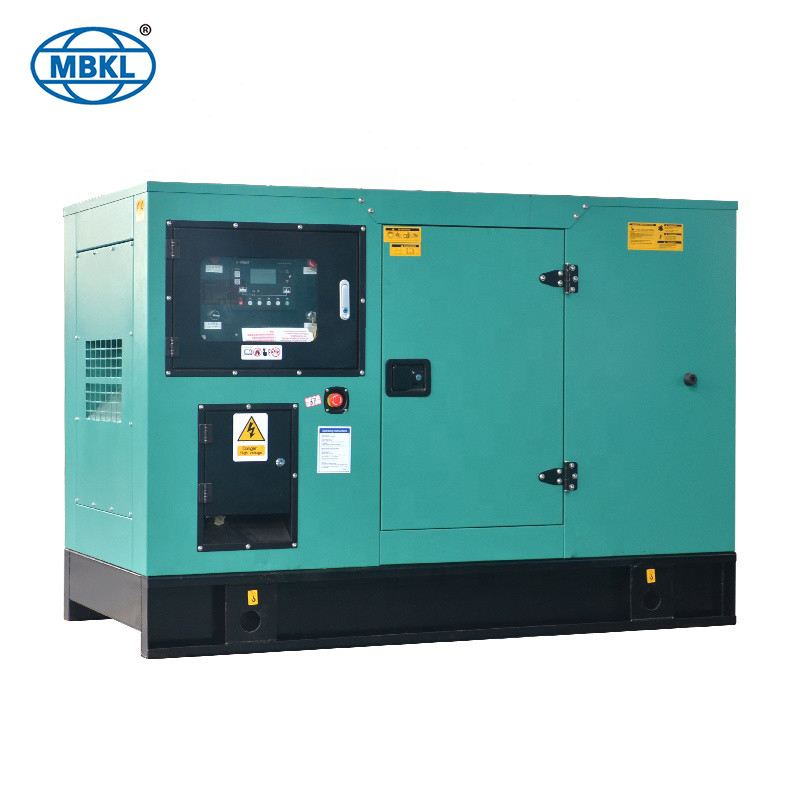

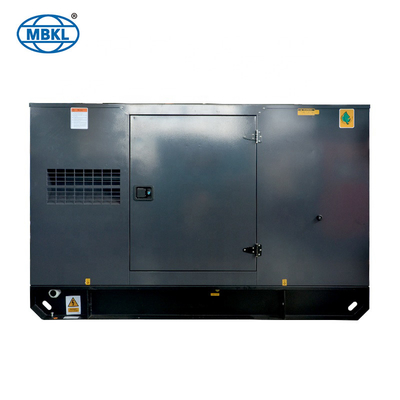

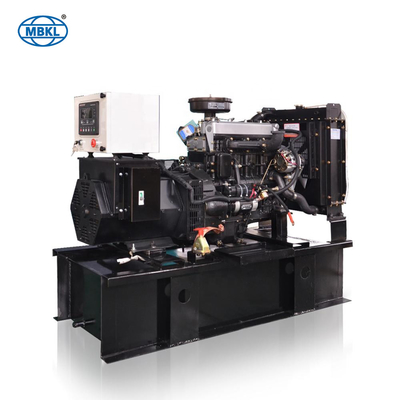

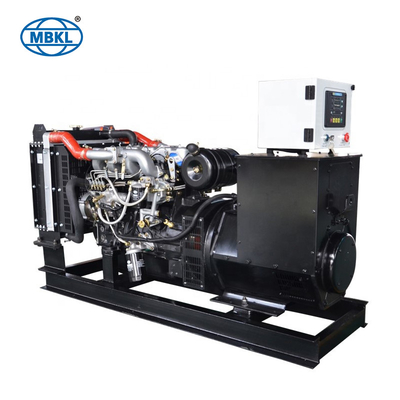

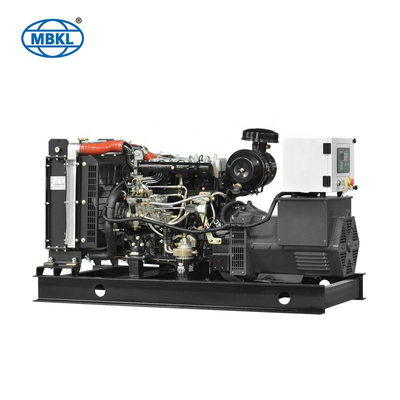

Pictures for reference only as below:



Yangdong Engine 48KW 60KVA Silent Diesel Generator For Home 0Yangdong Engine 48KW 60KVA Silent Diesel Generator For Home 1Yangdong Engine 48KW 60KVA Silent Diesel Generator For Home 2



Yangdong Engine 48KW 60KVA Silent Diesel Generator For Home 3



Applications:





1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.





About Mingbang company:





Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai



Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,

and so on. Key diesel generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will support you the most reliable and most cost-efficient generators and accessories. Weclome to visit our factory!



Yangdong Engine 48KW 60KVA Silent Diesel Generator For Home 4Yangdong Engine 48KW 60KVA Silent Diesel Generator For Home 5





RFQ



1. What is your warranty period?


Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).


2. What is your payment terms?


T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.


3. What is your delivery time?


As usually the delivery time is 7 to 15 working days.If you have special requirements, the delivery will be longer. Kindly contact us to confirm it.


4. Can the generators be customized?


Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.


5. Can you use our logo?


Yes. For mass orders, we can use customer's logo instead of ours.
