Perkins Diesel Generator Set
Created with Pixso.

4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator

4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator

Brand Name: MBKL
Model Number: MB-P1480
MOQ: 1 set
Price: USD$210000-USD$268000
Payment Terms: L/C,T/T,
Supply Ability: 200sets per month
Detail Information
Place of Origin:
China
Certification:
CE&ISO
Engine Brand:
Perkins 4016TAG1A
Alternator:
MBKL, Leroy Somer, Stamford
Control Panel:
Smartgen, Deep Sea
Rated Power:
1480kw/1850kva
Phase:
AC Single Phase / AC Three Phase
Frequency:
50HZ/60HZ
Rated Voltage:
230V / 400V
Speed:
1500RPM/1800RPM
Rated Current:
2664A
Type:
Open Type / Silent Type
Warranty:
12 Months / 1000 Hours
Fuel:
Diesel
ATS:
Optional
Packaging Details:
Plastic wrapped on Polywood bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200sets per month
Highlight:

4016TAG1A Perkins Engine Diesel Generator

,

1850KVA Diesel Generator

,

1480KW Perkins Diesel Generators

Product Description

1480kw with Perkins engine generator 1850kva powered by Perkins 4016TAG1A generator price



Perkins diesel engine advantage



1. Original Perkins diesel engine model :4016TAG1A
2. Comfortable, lower vibration and noise.
3.
The emission requirements o fnon-road diesel engines have been meet , and some products hanveachieved
the U.S.EPA, EuropeE-mark, india CPCB and other emission standars.



1480KW 1850KVA Perkins diesel generator specification as below:



Cummins Diesel Genset Specification
Manufacturer Jiangsu Mingbang Intelligent Technology Co.Ltd
Model MB-P1480
Prime Powder 1480KW/1850KVA
Standby Powder 1500KW/1875KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 2664A
Genset Weight 13777KG
Length x Width x Height (Engine) (mm) 5970×2775×3310mm
Voltage 400/230V
Frequency 50HZ/60HZ
Cummins Engine Specification
Manufacturer Perkins
Model 4016TAG1A
Rated speed 1500rpm
Prime Powder 1588KW/1985KVA
Standby Powder 1600KW/2000KVA
Fuel Consumption <=212g/KW.H
Lube oil capacity 214L
Bore (mm) x Stroke (mm) 160*190
Compression ratio 13.6:1
Displacement (litre) 61L
Coolant capacity, L 95
Configuration 16 V type   ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Jiangsu Mingbang Intelligent Technology Co.Ltd
Model MBV7D
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 60/50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 23
Excitation Type Brushless



Pictures for reference only as below:

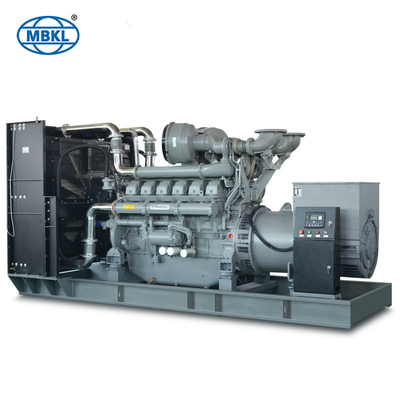

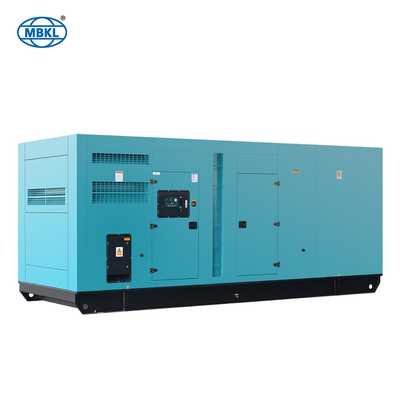

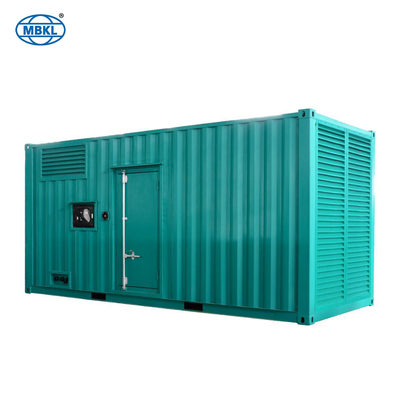

4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator 04016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator 14016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator 2

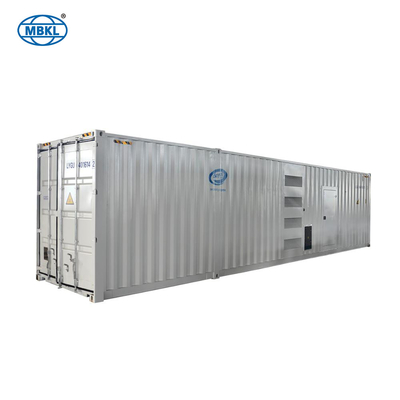

4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator 3


Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



About Mingbang company:



Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai


Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,

and so on. Key diesel generator stock ranges from 3KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will support you the most reliable and most cost-efficient generators and accessories. Weclome to visit our factory!


4016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator 44016TAG1A Perkins Engine 1480KW 1850KVA Diesel Generator 5



RFQ


1. What is your warranty period?


Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).


2. What is your payment terms?


T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.


3. What is your delivery time?


As usually the delivery time is 7 to 15 working days.If you have special requirements, the delivery will be longer. Kindly contact us to confirm it.


4. Can the generators be customized?


Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.


5. Can you use our logo?


Yes. For mass orders, we can use customer's logo instead of ours.
