products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Cummins Diesel Generator Sets
Created with Pixso.

Open Type 625KVA 500KW Cummins Diesel Generator Sets

Open Type 625KVA 500KW Cummins Diesel Generator Sets

Brand Name: MBKL
Model Number: MB-C500
MOQ: 1 set
Price: USD$100000 - USD$136000
Payment Terms: L/C,T/T,
Supply Ability: 200 sets per month
Detail Information
Place of Origin:
China
Certification:
CE&ISO
Engine Brand:
Cummins KTAA19-G6A
Alternator:
MBKL, Leroy Somer, Stamford
Control Panel:
Smartgen, Deep Sea
Rated Power:
625KVA/500KW
Phase:
AC Single Phase / AC Three Phase
Frequency:
50HZ / 60HZ
Rated Voltage:
400V/230V
Speed:
1500RPM
Rated Current:
900A
Type:
Open Type / Silent Type
Warranty:
12 Months / 1000 Hours
Fuel:
Diesel
ATS:
Optional
Packaging Details:
Plastic wrapped on Polywood bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200 sets per month
Highlight:

500KW Cummins Diesel Generator Sets

,

625KVA Cummins Diesel Generator Sets

,

Open Type Cummins Diesel Genset

Product Description

625KVA/500KW Cummins Diesel Generator Set With 570/610KW Engine


Cummins diesel engine advantage


1. Original Cummins diesel engine model :KTA38-G9
2. Strict quality control.
3. Some model engines approval EPA TIER 4 and Euro stage III emission requirement



100KW 125KVA Cummins diesel generator specification as below:



Cummins Diesel Genset Specification
Manufacturer Jiangsu Mingbang Intelligent Technology Co.Ltd
Model

MB-C500

Prime Power

625KVA/500KW

Standby Power 700KVA/560KW
Power Factor COSΦ=0.8(lagging)
Max. Output current 900A
Genset Weight 9200KG
Length x Width x Height (Engine) (mm)

3600*1550*1950

Voltage 400/230V
Frequency 50HZ/60HZ
Cummins Engine Specification
Manufacturer Cummins
Model

KTAA19-G6A

Rated speed 1500rpm
Prime Power

713KVA/570KV

Standby Power 763KVA/610KW
Fuel Consumption

≤196g/kw.h

Lube oil capacity 50L
Bore (mm) x Stroke (mm) 159*159
Compression ratio 13.9:1
Displacement (litre) 18.9L
Coolant capacity, L /
Configuration 6 cylinders,four-stroke, Turbocharged, Water-Air Intercool
Cooling Liquid Cooling
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Jiangsu Mingbang Intelligent Technology Co.Ltd
Model

MBC5D

Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range

≥95%-105%

Insulation Class H
IP Protection 22
Excitation Type Brushless

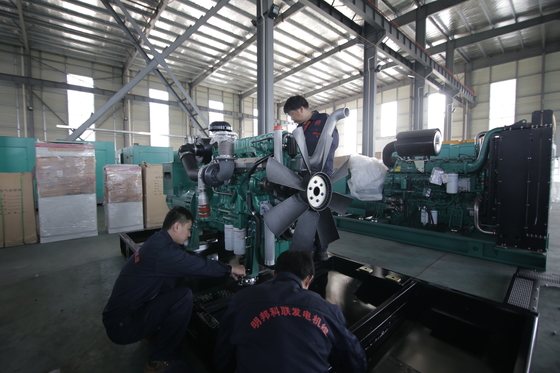

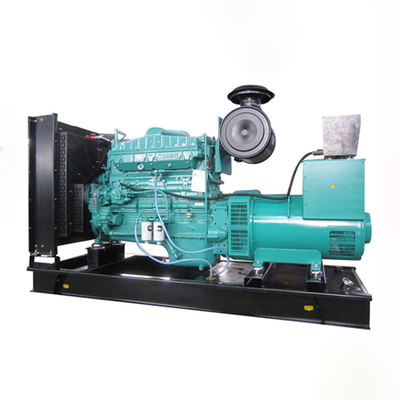

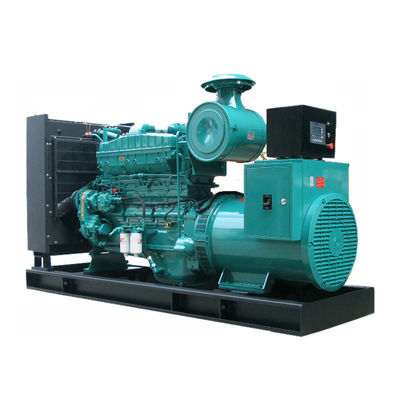

Pictures for reference only as below:


Open Type 625KVA 500KW Cummins Diesel Generator Sets 0Open Type 625KVA 500KW Cummins Diesel Generator Sets 1



Open Type 625KVA 500KW Cummins Diesel Generator Sets 2

Open Type 625KVA 500KW Cummins Diesel Generator Sets 3

Open Type 625KVA 500KW Cummins Diesel Generator Sets 4


Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



About Mingbang company:



Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai


Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,

and so on. Key diesel generator stock ranges from 3KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will support you the most reliable and most cost-efficient generators and accessories. Weclome to visit our factory!



RFQ


1. What is your warranty period?


Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).


2. What is your payment terms?


T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.


3. What is your delivery time?


As usually the delivery time is 7 to 15 working days.If you have special requirements, the delivery will be longer. Kindly contact us to confirm it.


4. Can the generators be customized?


Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.


5. Can you use our logo?


Yes. For mass orders, we can use customer's logo instead of ours.
