Perkins Diesel Generator Set
Created with Pixso.

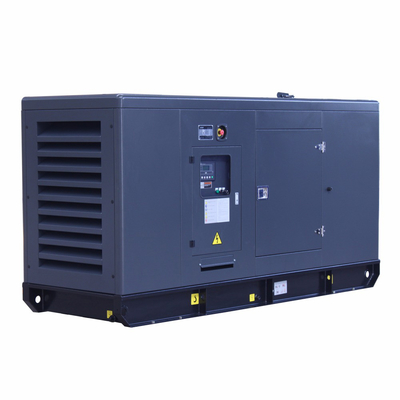

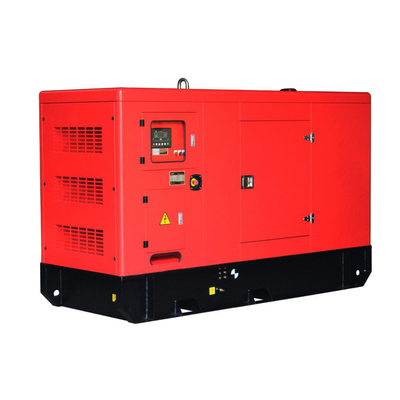

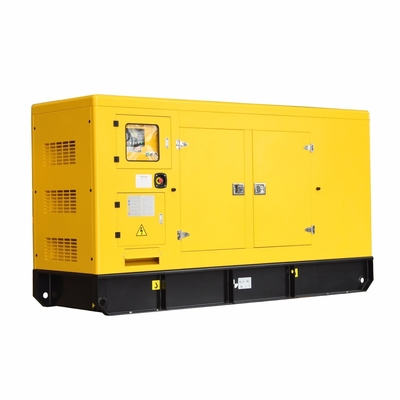

High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva

High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva

Brand Name: Perkins
Model Number: 2806C-E18TAG1A
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union,T/T,D/P,L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Place Of Origin::
Jiangsu China
Brand Name::
MBKL
Rated Voltage::
230V/400V
Engine Model::
Perkins 2806C-E18TAG1A
Rated Current::
810A
Frequency::
50Hz/60Hz
Alternator::
MBC5C
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-20 Days
Warranty Time::
1 Year/1000hours
Genset Dimension::
3600×1550×1950mm
Genset Weight::
3800kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-P500
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

Perkins Diesel Generators 480kw

,

Perkins Diesel Generators 600kva

,

2806D-E18TAG1A Engine Perkins Diesel Generator

Product Description

Perkins Engine 2806C-E18TAG1A Engine 500kw 625kva Silent Diesel Generator Price For Kenya Diesel Standby Generator


Generator 480KW

Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-P500
Prime Power 500KW/600KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 900A
Genset Weight 3800kg(Net)
Length x Width x Height (Engine) (mm) 3600×1550×1950
Voltage 400/230V
Frequency 50HZ
Perkins Engine Specification
Manufacturer England Perkins Engine Co. Ltd
Model 2806C-E18TAG1A
Rated speed 1500rpm
Prime Power 514KW/543KW
Fuel Consumption <=210g/KW.H
Lube oil capacity 62L
Bore (mm) x Stroke (mm) 145*183 mm
Compression ratio 17.01:00
Displacement (litre) 6.0L
Coolant capacity, L 51.4L
Configuration 6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBC5C
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless


High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 0High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 1High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 2High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 3High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 4High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 5


Q1: How is your Package & Payment & Delivery Date & Warranty?

A.1) Package: Plastic fiMB (free of charge) or wooden case (add USD200 for wooden)

A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C

at sight.

A.3) Delivery: 7-25 days after we get the down payment.

A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply)

from

installed date.During the guarantee period. such as Cummins or Perkins generators. they are international

brands and the after-sale service is worldwide. you can contact your country's after-sale or contact us for

repairment. when replacing spare parts, please kindly take some pictures to describe the problems. we will

solve it a.s.a.p.

Q2: Any advantages about your company?

Answers: MB Brand Diesel Generators with following advantages:

----MOQ is 1 set and we could finis more than 100sets/month

---- Middle-high Positioning;

---- 7-25days Lead-time;

---- Got the ISO and CE certificate; OEM Certifications

---- High quality with the best price can help you get more benefit and beat your competitors;

---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;

---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.

Q3: Any advantage of Digital Control Panel?

1) Controller Brand: Smartgen, Deepsea,ComAp
2) Control Panel: English interface,LED screen and touch buttons.
3) Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over

battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low

oil shutdown.


Mingbang Diesel Generator Set Factory

High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 0High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 1High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 2High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 9High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 10


About MingBang Intelligent Technology



Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai


Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

High Power 2806C-E18TAG1A Engine Perkins Diesel Generators 500kw 625kva 11

Our customers


More details for diesel generator sets ,please contact us any time



Welcome to orders~
