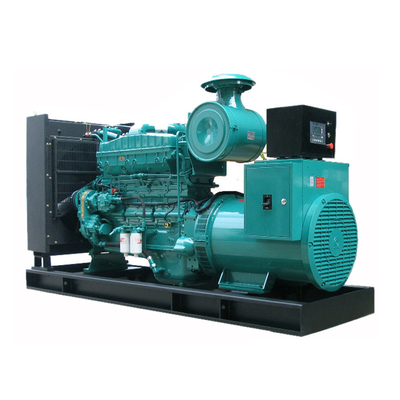

Weichai 12M26D968E200 Engine 800kw Open Diesel Generator sets

Name: Weichai 12M26D968E200 Engine 800kw Open Diesel Generator sets
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 12M26D968E200
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Weichai engine
Model Number:	12M26D968E200
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Weichai Open Diesel Generator 800KW

Rated Voltage::

230V/400V

Engine Model::

12M26D968E200

Rated Current::

1440A

Frequency::

50Hz/60Hz

Alternator::

MBV6C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

5000×2150×2500mm

Genset Weight::

7000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-800

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

12M26D968E200 Engine Diesel Generator

800kw Open Diesel Generator

800kw Weichai Diesel Generator

Product Description

Weichai 12M26D968E200 diesel generator sets features:

(1) .Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-800
Prime Power		800KW/1000KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		1440A
Genset Weight		7000KG
Length x Width x Height (Engine) (mm)		5000×2150×2500mm
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Weichai Engine
Model		12M26D968E200
Rated speed		1800rpm
Prime Power		880KW/1100KVA
Standby Power		968KW/1210KVA
Fuel Consumption		≤208g/kw.h
Lube oil capacity		135 L
Bore (mm) x Stroke (mm)		150×150 mm
Displacement (litre)		37.8
Coolant capacity, L		/
Configuration		12 cylinder V-type, four stroke, water air cooling
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBV6D
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

Weichai 12M26D968E200 Engine 800kw Open Diesel Generator sets 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

Weichai 12M26D968E200 Engine 800kw Open Diesel Generator sets 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
