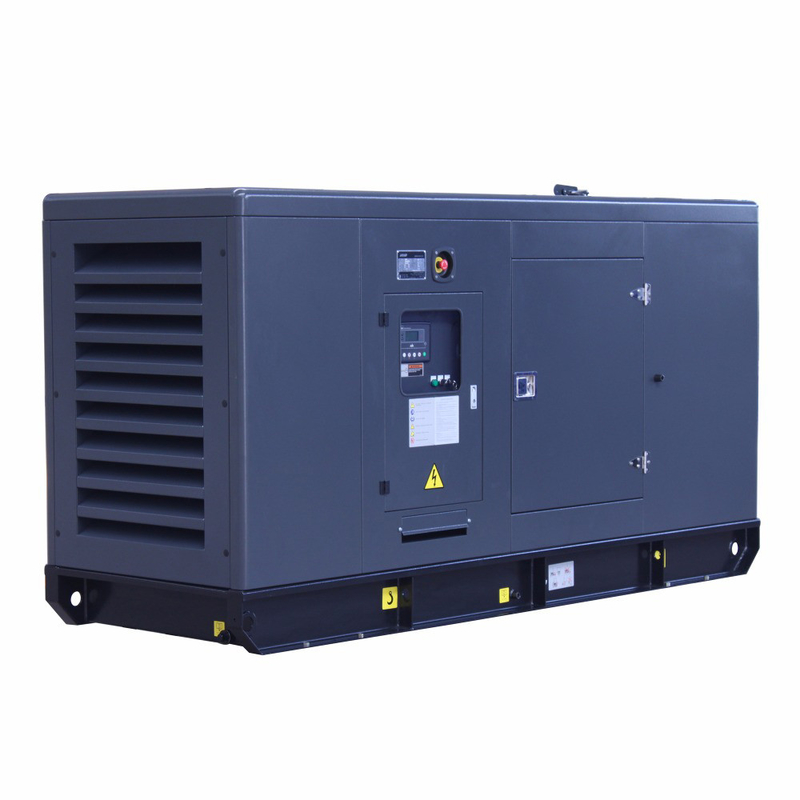

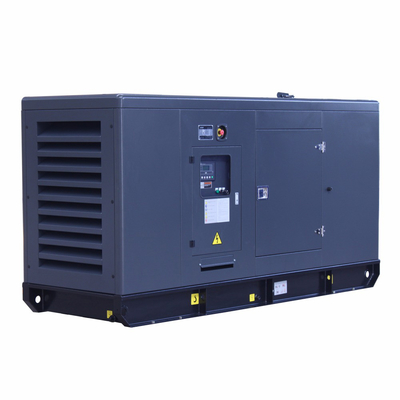

Waterproof SDEC Diesel Generators Set For Construction And Farm Using

Name: Waterproof SDEC Diesel Generators Set For Construction And Farm Using
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: SC13G420D2
Price: 591,700.00 USD
Availability: InStock

Brand Name:	SDEC SDEC
Model Number:	SC13G420D2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

SDEC Diesel Generator 300KW

Rated Voltage::

230V/400V

Engine Model::

SC13G420D2

Rated Current::

450A

Frequency::

50Hz/60Hz

Alternator::

MBC27J

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

3000×1160×1700mm

Genset Weight::

2450kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-S300

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

Waterproof SDEC Diesel Generators Set

Diesel Generators Set For Construction

Farm SDEC Diesel Generators Set

Product Description

Waterproof And Soundproof Diesel Generator Set For Power Supply For Construction / Farm / Factory

SDEC SDEC SC13G420D2 diesel generator sets features:

(1). Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-S300
Prime Power		250KW/312.5KVA
Standby Power		280KW/350KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		450 A
Genset Weight		2450KG
Length x Width x Height (Engine) (mm)		3000×1160×1700
Voltage		400/230
Frequency		50HZ
SEDC Engine Specification
Brand		SDEC
Model		SC13G420D2
Rated speed		1500rpm
Prime Power		280KW/350KVA
Standby Power		308KW/385KVA
Fuel Consumption		<=200g/KW.H
Lube oil capacity		33L
Bore (mm) x Stroke (mm)		135×150
Compression ratio		17:1
Displacement (litre)		12.88L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC4C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Waterproof SDEC Diesel Generators Set For Construction And Farm Using 0

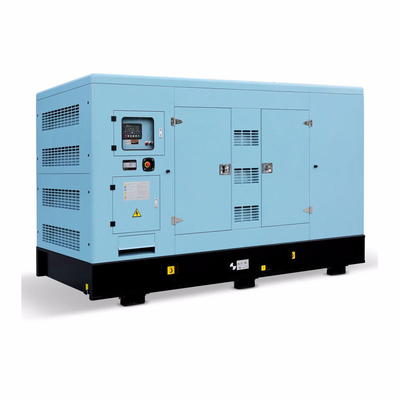

Small Diesel Generator 300KW Waterproof Canopy Diesel Generators Power Plant For Sale

Painting materials

rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----watch setting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Painting material is powder, pretreatment takes 50 minutes, complete line paint takes 2.5hours.

Waterproof SDEC Diesel Generators Set For Construction And Farm Using 4

Our factory

Mingbang power is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.

Waterproof SDEC Diesel Generators Set For Construction And Farm Using 5

FAQ Of SDEC diesel generators prices

1.Which parameters you need to know?
a.We design the product according to your request, such as:
Power, Working Life, Water/Air-Cooler, Open Frame , Silent and Wheel
2.How to deal with broken machine?
a.We provide professional technical response to your question, we make
Sure the configuration, feature, optional item can work.
Maintenance Return your parts to us (Freight by yourself)
b. Enclose more parts when shipment
Parts Reply to you as quickly as possible

3. What do we warranty?
One year quality warranty.
Offer 24 hours service on telephone helpline. Whichever comes first.
a.During guarantee period, we provide free quick-wear parts for
problem caused by our quality of production or raw material.
b.After expiration, we provide spare parts maintenance for half price.
4.What about Guarantee?
a.Good reputation for reliable quality and reasonable price
b.Advanced production line by skilled workers
c.Two hours strictly testing of the machine before shipment
d.CE ISO BV

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
