Tongchai TCR200 Engine Open Diesel Generators Sets 200kw 250KVA

Name: Tongchai TCR200 Engine Open Diesel Generators Sets 200kw 250KVA
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: TCR200
Price: 3,000.00 USD
Availability: InStock

Brand Name:	Tongchai engine
Model Number:	TCR200
MOQ:	1 PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Frequency:

50/60HZ

Speed:

1500/1800rpm

Rated Voltage:

400/230V

Product Name:

Diesel Genertor

Engine:

Tongchai

Controller:

Smartgen/Deepsea/Comap

Engine Type:

TCR200

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

Open Diesel Generators Sets 250KVA

TCR200 Engine Diesel Generators

Comap Controller Diesel Generator Sets

Product Description

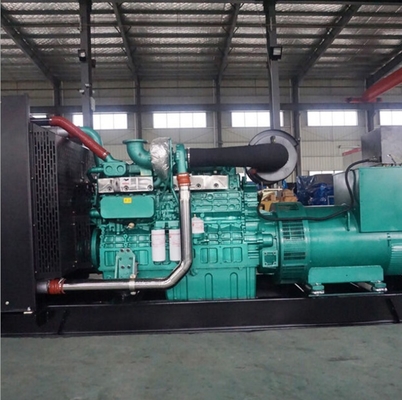

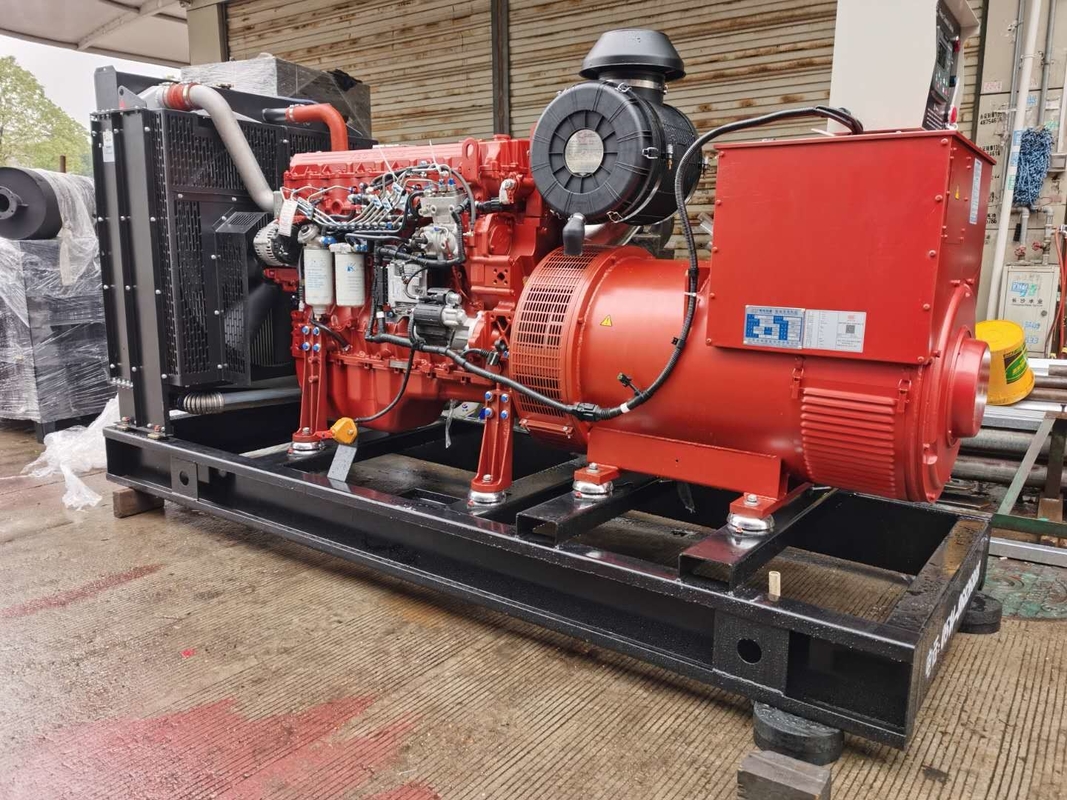

TCR200 Engine Open Diesel Generator 200kw 250KVA

Brand Name::	Steyr Open Diesel Generator 400KW	Rated Voltage::	400V/230V
Engine Model::	TCR200	Rated Current::	360A
Frequency::	50Hz/60Hz	Alternator::	MBC27J
Control Panel::	Deepsea / Harsen / Smartgen	Certificate::	ISO 9001:14000,CE
ATS::	Optional	Delivery::	7-30 Days
Warranty Time::	1 Year	Genset Dimension::	2950×1145×1850mm
Genset Weight::	2320kgs	Speed::	1500rpm/1800rpm
Model Number::	MB-200
High Light:	200kw Open Diesel Generator, TCR200 Open Diesel Generator

Product Description

Tongchai TCR200 diesel generator sets features:

(1). Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-200
Prime Power		200KW/250KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		360A
Genset Weight		2320KG
Length x Width x Height (Engine) (mm)		2950×1145×1850mm
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Tongchai Engine
Model		TCR200
Rated speed		1500rpm
Prime Power		200KW
Standby Power		250KW
Fuel Consumption		≤224g/kw.h
Lube oil capacity		50L
Bore (mm) x Stroke (mm)		135×150mm
Displacement (litre)		13.68
Coolant capacity, L		26L
Configuration		6 cylinder V-type, four stroke, water air cooling
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27J
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

Tongchai TCR200 Engine Open Diesel Generators Sets 200kw 250KVA 0

Our factory

Mingbang Power Tongchai Diesel Generating Set, power ranging from 230kVa up to 1320kVa. Tongchai is the world's top engine brand, for more than 80 years, Tongchai has been the world's leading supplier of diesel and gas engines in the 200 - 1200 kW market. Tongchai key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.
