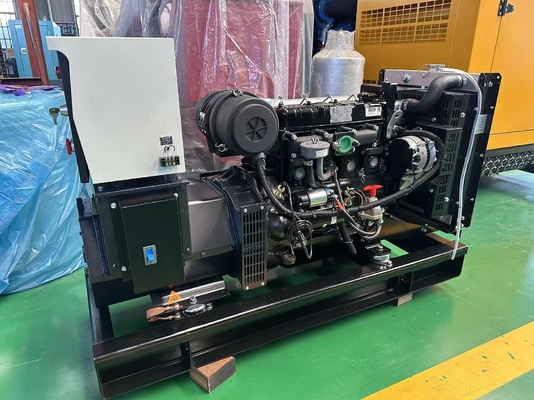

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz

Brand Name:	SDEC engine
Model Number:	MB-20
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

SDEC Open Diesel Generator 20KW/25KVA

Rated Voltage::

230V/400V

Engine Model::

4Z2.3-G21

Rated Current::

36A

Frequency::

50Hz/60Hz

Alternator::

MBC20A

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

1450×530×980mm

Genset Weight::

450kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-40

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Product Description

SDEC 4Z2.3-G21 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset Parameters

Genset
Model	MB-20
Output Power	20KW/25KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	36A
Weight	450kg (Net)
Dimensions	1450×530×980mm
Voltage	220v
Frequency	60Hz
Diesel Engine
Manufacturer	SDEC Diesel Engine
Model	4Z2.3-G21
Rotate Speed	1800RPM
Power	21/23KW
Fuel Consumption	≤ 225g/kw.h
Lube Oil Capacity	15 L
Cylinder/Stroke	85*100 mm
Compression Ratio	18:1
Gas Displacement	2.3L
Configuration	4-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC20A
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	220V, 60Hz, COSΦ=0.8 lagging, Single-phase
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz 3

SDEC 4Z2.3-G21 Engine Open/Silent type Diesel Generator Set 20KW/25KVA 60Hz 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
