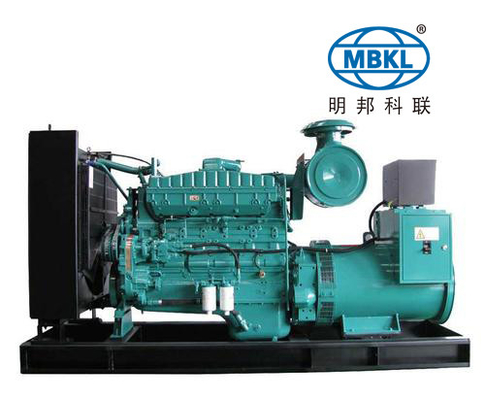

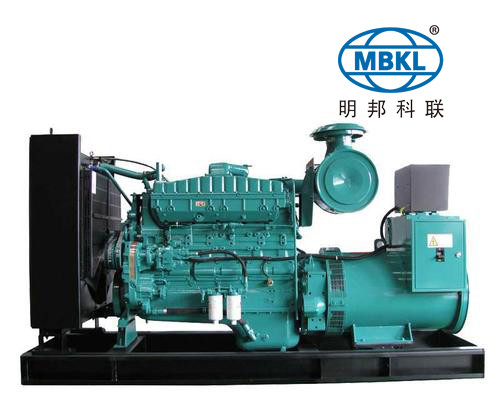

Cummins 6LTAA8.9-G3 engine Diesel Generators Brushless 300kVA/240KW genset

Name: Cummins 6LTAA8.9-G3 engine Diesel Generators Brushless 300kVA/240KW genset
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 6LTAA8.9-G3
Price: 1181600.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	6LTAA8.9-G3
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Cummins 6LTAA8.9-G3

Rated Current::

432A

Frequency::

50Hz/60Hz

Alternator::

Stamford S4L1D-D41

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

5000×2300×2650mm

Genset Weight::

14000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-240

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Product Description

High Quality Brushless Diesel Generator Sets With Cummins Engine Smartgen Control System Open/Soundproof Type

Genset Parameters

Genset
Model	MB-240
Output Power	300kVA/240KW
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	432A
Weight	3600KG
Dimensions	385013001850mm
Voltage	400/230
Frequency	50Hz
Diesel Engine
Manufacturer	Cummins Diesel Engine
Model	6LTAA8.9-G3
Rotate Speed	1500RPM
Power	230/250
Fuel Consumption	≤196g/kw.h
Lube Oil Capacity	27 L
Cylinder/Stroke	114×145 mm
Compression Ratio	16.6:1
Gas Displacement	8.9 L
Configuration	6-cylinder In-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Stamford Alternator
Model	S4L1D-D41
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Main Features
1)Easy operation,simple maintenance, Low cost.

2) Compact structure, high-strength chassis,beautiful design.

3) Good performance damping system, coperate more conveniently.

4) Compliance with international electrical safety standards of electrical system.

5) continue running 8 hours base tank.

6) High-performance maintenance-free batteries with isolation switch,it is more safety.

7) 50℃ radiator .

8) Forklift bottom hole design, easy to transport.

9) Industrial type muffler.

10) Noise reduction structure,Low overall noise.

11) Convenient power output interface and ATS Interface,satisfy customer's requires.

12) IP56 (control system).

13)The personalized design for user.

Mingbang Diesel Generator Set Factory

Cummins 6LTAA8.9-G3 engine Diesel Generators Brushless 300kVA/240KW genset 0

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

More details for diesel generator sets ,please contact us any time

Welcome to orders~
