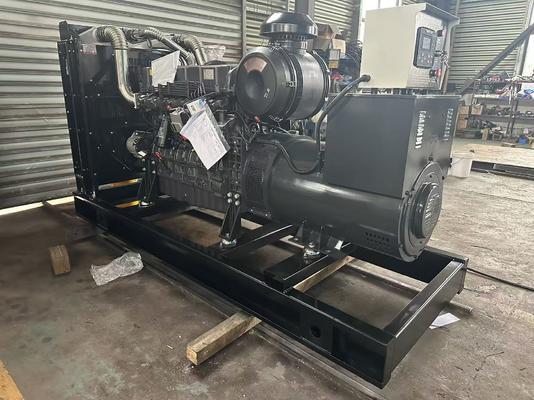

ISO 9001:14000 Certified 200KW Output 400V Voltage SDEC Diesel Generator Set with Open Type Design

Name: ISO 9001:14000 Certified 200KW Output 400V Voltage SDEC Diesel Generator Set with Open Type Design
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: SC12E420D2
Price: 591,700.00 USD
Availability: InStock

Brand Name:	SDEC engine
Model Number:	SC12E420D2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

SDEC Open Diesel Generator 250kw

Rated Voltage::

230V/400V

Engine Model::

SC12E420D2

Rated Current::

36 A

Frequency::

50Hz/60Hz

Alternator Brand::

MBKL / Wuxi Standford / Stamford/ LEROY-SOMER

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Speed::

1500rpm/1800rpm

Model Number::

MB-250

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

ISO 9001:14000 Certified SDEC Diesel Generator

200KW Output Diesel Generator Set

400V Voltage Power Generator

Product Description

SDEC SC12E420D2 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset Parameters

Genset
Model	MB-250
Output Power	250KW /312KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	450 A
Silent type Weight	2450KG
Silent type Dimensions	3000mm×1160mm×1700mm
Voltage	400/230V
Frequency	50Hz
Diesel Engine
Manufacturer	SDEC Diesel Engine
Model	SC12E420D2
Rotate Speed	1500RPM
Power	308KW
Fuel Consumption	≤200/kw.h
Lube Oil Capacity	33 L
Cylinder/Stroke	135×150 mm
Compression Ratio	17:1
Displacement	12.88L
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC4C
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

ISO 9001:14000 Certified 200KW Output 400V Voltage SDEC Diesel Generator Set with Open Type Design 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

ISO 9001:14000 Certified 200KW Output 400V Voltage SDEC Diesel Generator Set with Open Type Design 3

ISO 9001:14000 Certified 200KW Output 400V Voltage SDEC Diesel Generator Set with Open Type Design 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
