400kVA Cummins QSNT-G3 Engine Diesel Generator Set ISO 9001:14000 Certified Power Solution

Name: 400kVA Cummins QSNT-G3 Engine Diesel Generator Set ISO 9001:14000 Certified Power Solution
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: QSNT-G3
Price: 1181600.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	QSNT-G3
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Cummins QSNT-G3

Rated Current::

576A

Frequency::

50Hz/60Hz

Alternator::

Stamford/ LEROY-SOMER/ MBKL

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

3300*1150*1800mm

Genset Weight::

3000kg

Speed::

1500rpm/1800rpm

Model Number::

MB-320

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

400kVA Diesel Generator Set

Cummins QSNT-G3 Engine Diesel Genset

1500rpm/1800rpm Cummins Generator

Product Description

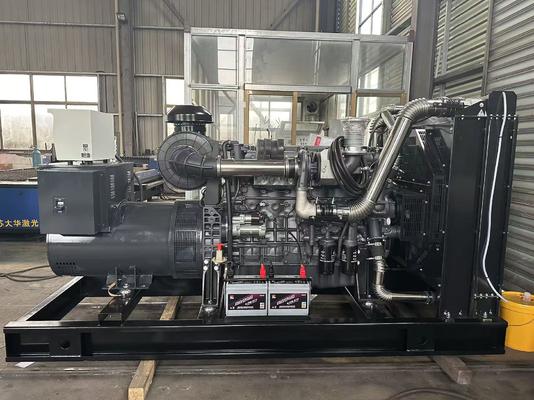

Cummins QSNT-G3 Engine Diesel Generator Sets - 400kVA Power Solution

High Quality Brushless Diesel Generator Sets

Featuring Cummins Engine with Smartgen Control System, available in both Open and Soundproof configurations.

Genset Specifications

Parameter	Value
Model	MB-320
Output Power	320KW/400KVA
Power Factor	COSΦ=0.8 (lagging)
Maximum Output Current	576A
Weight	3000kg (Net)
Dimensions	3300×1150×1800mm
Voltage	400/230V
Frequency	50Hz

Diesel Engine Specifications

Parameter	Value
Manufacturer	Cummins Diesel Engine
Model	QSNT-G3
Rotate Speed	1500RPM
Power	358KW/392KW
Fuel Consumption	≤ 205g/kw.h
Cylinder/Stroke	140×152 mm
Compression Ratio	16.7:1
Displacement	14L
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter

Alternator Specifications

Parameter	Value
Manufacturer	LEROY-SOMER Alternator
Model	TAL-A473-A
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Key Features

Easy operation, simple maintenance, and low operating costs
Compact structure with high-strength chassis and aesthetic design
Advanced damping system for smooth operation
Compliant with international electrical safety standards
8-hour continuous operation with base fuel tank
High-performance maintenance-free batteries with isolation switch
50℃ radiator for optimal cooling
Forklift bottom hole design for easy transportation
Industrial-grade muffler system
Noise reduction structure for low operational noise
Convenient power output and ATS interfaces
IP56 protection for control system
Customizable design options available

Mingbang Diesel Generator Set Factory

About Mingbang Intelligent Technology

Established in 2005, Mingbang Intelligent Technology Co., LTD occupies 5042 square meters in Yangzhou city, Jiangsu Province - the heart of China's manufacturing industry zone near Shanghai.

We maintain close partnerships with leading power manufacturers including Cummins, Perkins, Deutz, Volvo, and Chinese brands SDEC, Yuchai, and Jichai. Our generator sets feature alternators from Stamford, Marathon, Leroy-Somer, and MBKL.

Our comprehensive inventory ranges from 10KVA to 3000KVA, including silent generators, open generators, container generators, and mobile gensets.

Whether you need power solutions for offices, residential developments, industrial projects, shopping centers, hospitals, railways, prisons, hotels, airports, or bank data centers, Mingbang provides the most reliable and cost-efficient generators and accessories.
