500KW 625KVA Open Type Diesel Generator Set with Yuchai Engine and 230V/400V Output

500KW 625KVA Open Type Diesel Generator Set with Yuchai Engine and 230V/400V Output

Brand Name:	Yuchai engine
Model Number:	MB-500
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator 625KVA

Rated Voltage::

230V/400V

Engine Model::

YC6TC840-D31

Rated Current::

900A

Frequency::

50Hz/60Hz

Alternator Brand::

MBKL / Wuxi Standford / Stamford/ LEROY-SOMER

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year Or 1000 Runing Hours(Whichever Arrive First)

Speed::

1500rpm/1800rpm

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

500KW Diesel Generator Set

625KVA Power Generator

230V/400V Diesel Genset

Product Description

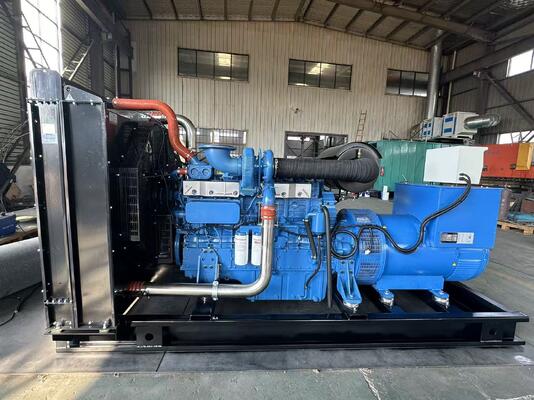

500kW Open Type Diesel Generator Set with Yuchai Engine

Key Features

Full control panel with power indicator light and oil light
Emergency shutdown for low oil pressure and high water temperature
Large fuel tank ensures continuous running
Low noise & vibration operation
Compact structure with reliable performance
Easy installation and maintenance

Painting Process

Rust removal in pickling tank (10 minutes) → unoil (30 mins) → rinsing (3 mins) → wathsetting (10 mins) → rinsing (5 mins) → parkerising (20 mins) → rinsing → blow dry → stoving → pylons → spray paint (static flame paint) → oven (170°C/20 mins) → draw a charge → inserting coil.

Generator Specifications

Model	MB-500
Output Power	500KW/625KVA
Power Factor	COSΦ=0.8 (lagging)
Maximum Output Current	900A
Weight	3900kg (Net)
Dimensions	3500×1500×2000mm
Voltage	400/230V
Frequency	50Hz

Diesel Engine Specifications

Manufacturer	Yuchai Diesel Engine
Model	YC6TC840-D31
Rotate Speed	1500RPM
Power	561/616KW
Fuel Consumption	≤220g/kw.h
Cylinder/Stroke	152×180 mm
Compression Ratio	14:1
Displacement	19.60L
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter

Alternator Specifications

Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC5D
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

About Our Factory

Mingbang Power offers Perkins Diesel Generating Sets with power ranging from 45kVa up to 2250kVa. For more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4-1800 kW market.

Our factory partners with world-renowned engine manufacturers including CCEC, DCEC, VOLVO, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, and Jichai. We specialize in synchronous 100% copper wire alternators with power range from 6.5KW to 2000KW.

For more details about our diesel generator sets, please contact us anytime.

Your further inquiries are welcome!
