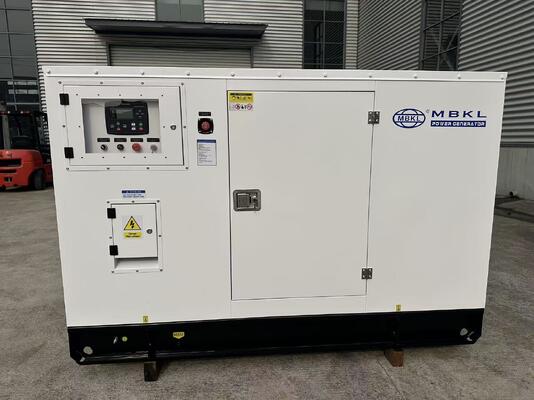

50KW Diesel Generator Set with Yuchai Engine YC4D90Z-D25 Silent type Open type Power solutions

50KW Diesel Generator Set with Yuchai Engine YC4D90Z-D25 Silent type Open type Power solutions

Brand Name:	Yuchai engine
Model Number:	MB-50
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

YC4D90Z-D25

Rated Current::

90A

Frequency::

50Hz/60Hz

Alternator Brand::

MBKL / Wuxi Standford / Stamford/ LEROY-SOMER

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year Or 1000 Runing Hours(Whichever Arrive First)

Speed::

1500rpm/1800rpm

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Product Description

Yuchai YC4D90Z-D25 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset
Model	MB-50
Output Power	50KW/62.5KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	90A
Silent type Weight	1150kg (Net)
Silent type Dimensions	21001480950mm
Voltage	400/230V
Frequency	50Hz
Diesel Engine
Manufacturer	Yuchai Diesel Engine
Model	YC4D90Z-D25
Rotate Speed	1500RPM
Power	60KW/66KW
Fuel Consumption	≤212g/kw.h
Lubricating oil capacity	13.5L
Cylinder/Stroke	110mm/125mm
Compression Ratio	17.5:1
Displacement	4.75
Configuration	4-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC22C
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

50KW Diesel Generator Set with Yuchai Engine YC4D90Z-D25 Silent type Open type Power solutions 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

50KW Diesel Generator Set with Yuchai Engine YC4D90Z-D25 Silent type Open type Power solutions 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

50KW Diesel Generator Set with Yuchai Engine YC4D90Z-D25 Silent type Open type Power solutions 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
