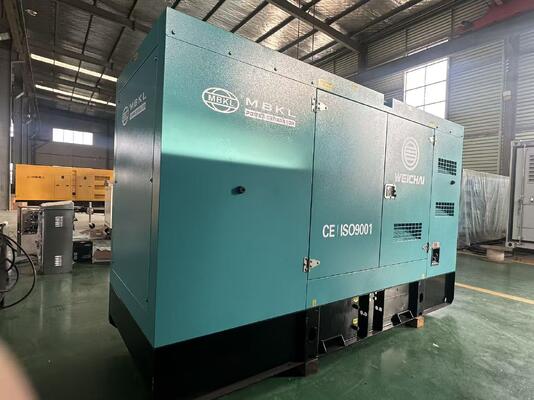

112KW Weichai Silent Diesel Generating Set (140KVA) - Perfect for Construction, Factory, and Hospital Power Backup Generator Manufacturer

112KW Weichai Silent Diesel Generating Set (140KVA) - Perfect for Construction, Factory, and Hospital Power Backup Generator Manufacturer

Brand Name:	WEICHAI engine
Model Number:	MB-112
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

WEICHAI Diesel Generator 112KW/140KVA

Rated Voltage::

230V/400V

Engine Model::

WP4.6ND138E310

Rated Current::

201.6A

Frequency::

50Hz/60Hz

Alternator Brand::

MBKL / Wuxi Standford / Stamford/ LEROY-SOMER

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year Or 1000 Runing Hours(Whichever Arrive First)

Speed::

1500rpm/1800rpm

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

112KW Weichai silent diesel generator

140KVA diesel generator set for construction

Weichai hospital power backup generator

Product Description

112KW Weichai Silent Diesel Generating Set (140KVA) - Perfect for Construction, Factory, and Hospital Power Backup Generator Manufacturer

Product Features

Full control panel with power indicator light and oil light
Emergency shutdown for low oil pressure and high water temperature
Large fuel tank ensures continuous running
Low noise & vibration operation
Compact structure design
Reliable performance
Easy installation and maintenance

Painting Process

Rust removal in pickling tank (10 minutes) → Unoil (30 mins) → Rinsing (3 mins) → Water setting (10 mins) → Rinsing (5 mins) → Parkerising (20 mins) → Rinsing → Blow dry → Stoving → Pylons → Spray paint (static flame paint) → Oven (170°C/20 mins) → Draw a charge → Inserting coil.

Genset
Model	MB-112
Output Power	112KW/140KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	201.6A
Weight	1250kg(Net)
Dimensions	2400×1000×1550
Voltage	400/230V
Frequency	50Hz
Diesel Engine
Manufacturer	Weichai Diesel Engine
Model	WP4.6ND138E310
Rotate Speed	1500RPM
Power	125/138KW
Fuel Consumption	≤ 195g/kw.h
Cylinder/Stroke	108*125 mm
Compression Ratio	16.9:1
Displacement	4.58L
Configuration	4-cylinder in-L-type, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	MBKL Alternator
Model	MBC27C
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Product Images

About Our Factory

Mingbang Power Perkins Diesel Generating Set offers power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, with over 80 years of experience as a leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins' strength lies in its ability to tailor engines precisely to meet customers' requirements, trusted by more than 1,000 leading manufacturers across industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory features CCEC, DCEC, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, Jichai and other world-renowned engines for generator sets. We specialize in synchronous 100% copper wire alternators with over 20 years of experience. The MB brand alternator has expanded worldwide, with power range from 6.5KW to 2000KW.

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

For more details about our diesel generator sets, please contact us anytime.

Your further inquiries are welcome!
