High-Performance Yuchai 2000KVA/1600KW Open type Diesel Generator for Sale Generator Manufacturer

High-Performance Yuchai 2000KVA/1600KW Open type Diesel Generator for Sale Generator Manufacturer

Brand Name:	Yuchai engine
Model Number:	MB-1600
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

YC16VTD2270-D30

Rated Current::

2880A

Frequency::

50Hz/60Hz

Alternator Brand::

MBKL / Wuxi Standford / Stamford/ LEROY-SOMER

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year Or 1000 Runing Hours(Whichever Arrive First)

Speed::

1500rpm/1800rpm

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Product Description

Yuchai YC16VTD2270-D30 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset
Model	MB-1600
Output Power	1600KW/2000KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	2880A
Weight	10900kg (Net)
Dimensions	526022502650mm
Voltage	400/230V
Frequency	50Hz
Diesel Engine
Manufacturer	Yuchai Diesel Engine
Model	YC16VTD2270-D30
Rotate Speed	1500RPM
Power	1520KW/1672KW
Fuel Consumption	≤211.1 g/kw.h
Lubricating oil capacity	280L
Cylinder/Stroke	152mm/180mm
Compression Ratio	14:1
Displacement	52.26L
Configuration	16-cylinder V-type, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBV8A
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

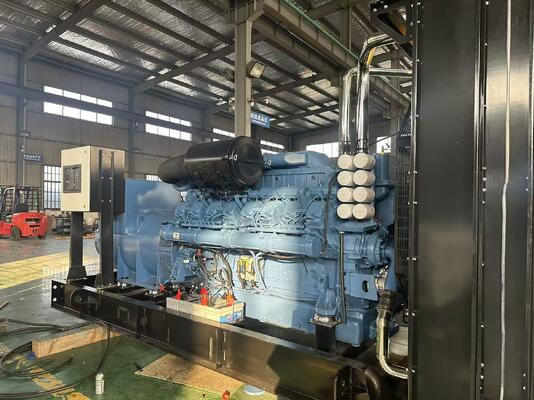

High-Performance Yuchai 2000KVA/1600KW Open type Diesel Generator for Sale Generator Manufacturer 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

High-Performance Yuchai 2000KVA/1600KW Open type Diesel Generator for Sale Generator Manufacturer 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

High-Performance Yuchai 2000KVA/1600KW Open type Diesel Generator for Sale Generator Manufacturer 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
