70kW 87.5kVA Weichai Diesel Generator for Sale | MBKL POWER Manufacturer

70kW 87.5kVA Weichai Diesel Generator for Sale | MBKL POWER Manufacturer

Brand Name:	WEICHAI engine
Model Number:	MB70
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

WEICHAI

Rated Voltage::

220/110V

Engine Model::

WP4.1D80E200

Rated Current::

229A

Frequency::

50Hz/60Hz

Alternator Brand::

MBKL / Wuxi Standford / Stamford/ LEROY-SOMER

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year Or 1000 Runing Hours(Whichever Arrive First)

Speed::

1500rpm/1800rpm

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Product Description

70kW 87.5kVA Weichai Diesel Generator for Sale | MBKL POWER Diesel Generator Manufacturer

Product Features

Full control panel with power indicator light and oil light
Emergency shutdown for low oil pressure and high water temperature
Large fuel tank ensures continuous running
Low noise & vibration operation
Compact structure design
Reliable performance
Easy installation and maintenance

Painting Process

Rust removal in pickling tank (10 minutes) → Unoil (30 mins) → Rinsing (3 mins) → Water setting (10 mins) → Rinsing (5 mins) → Parkerising (20 mins) → Rinsing → Blow dry → Stoving → Pylons → Spray paint (static flame paint) → Oven (170°C/20 mins) → Draw a charge → Inserting coil.

Genset Parameters

Genset
Model	MB70
Output Power	70KW/87.5KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	229A
Silent type Weight	1360kg(Net)
Silent type Dimensions	250011001625mm
Voltage	220/110V
Frequency	50Hz
Diesel Engine
Manufacturer	Weichai Diesel Engine
Model	WP4.1D80E200
Rotate Speed	1500RPM
Power	72/80KW
Fuel Consumption	≤ 235g/kw.h
Cylinder/Stroke	105*118 mm
Compression Ratio	17.5:1
Displacement	4.087L
Configuration	4-cylinder in-Line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Wuxi Standford Alternator
Model	STUC-70
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	220V/110V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

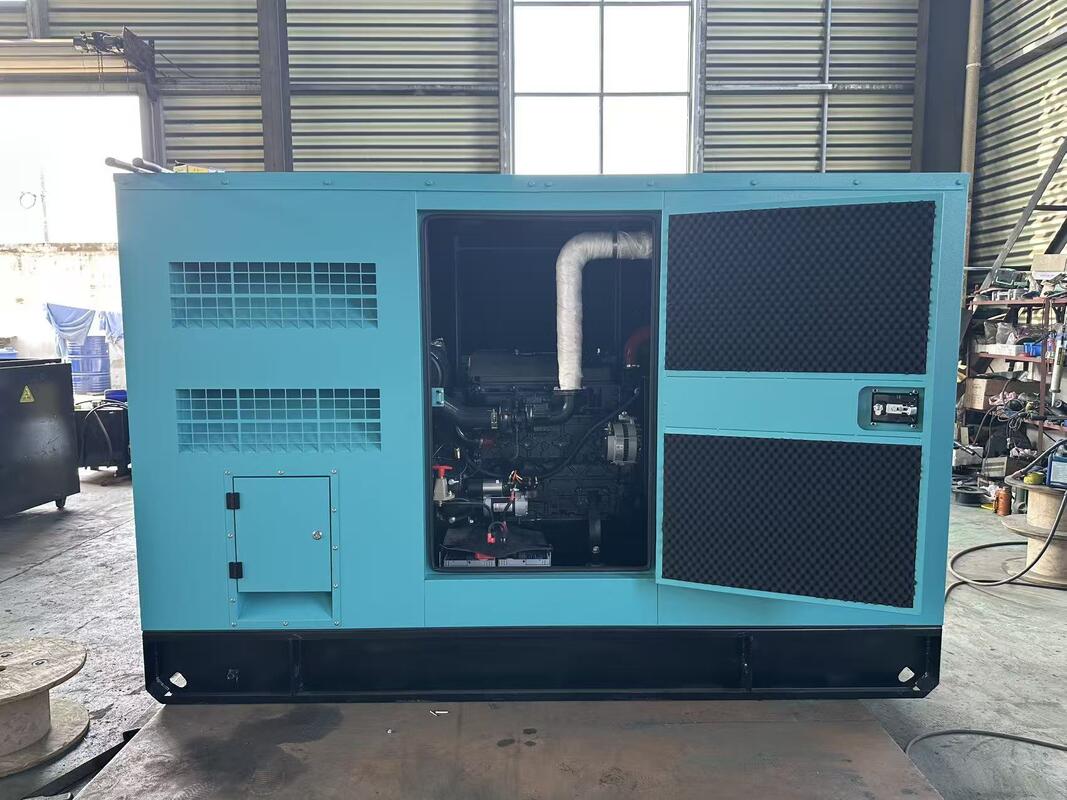

Product Images

About Our Factory

Mingbang Power Perkins Diesel Generating Set offers power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, with over 80 years of experience as a leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins' strength lies in its ability to tailor engines precisely to meet customers' requirements, trusted by more than 1,000 leading manufacturers across industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory features CCEC, DCEC, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, Jichai and other world-renowned engines for generator sets. We specialize in synchronous 100% copper wire alternators with over 20 years of experience. The MB brand alternator has expanded worldwide, with power range from 6.5KW to 2000KW.

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

For more details about our diesel generator sets, please contact us anytime.

Your further inquiries are welcome!
